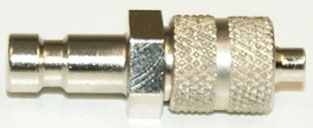

NW 2,7 plug connector
| Raw material | body: brass MS 58 |
| Cutoff | one-sided locked |
| Field of application | pneumatic systems, compressed-air supply; control- and measure-technology |
other options on request
- valve free pass or both-sided blocking
- material high grade steel 1.4305
- bend protection spring
Product overview
| NW 2,7 plug - 3 mm hose tail | ||
 |
||
| Product no.: | S 27300 | |
| Length: | 24 mm | |
| Length connector: | 10 mm | |
| Diameter: | 10 mm | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - 4 mm hose tail | ||
|
||
| Product no.: | S 27400 | |
| Length: | 24 mm | |
| Length connector: | 10 mm | |
| Diameter: | 10 mm | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - 5 mm hose tail | ||
|
||
| Product no.: | S 27500 | |
| Length: | 24 mm | |
| Length connector: | 10 mm | |
| Diameter: | 10 mm | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - 1/8" external thread | ||
 |
||
| Product no.: | SA 2700 | |
| Length: | 20 mm | |
| Length connector: | 7 mm | |
| Diameter: | 10 mm | |
| Width across flat: | SW 11 | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - M5 external thread | ||
|
||
| Product no.: | SA 2705 | |
| Length: | 18 mm | |
| Length connector: | 5 mm | |
| Diameter: | 10 mm | |
| Width across flat: | SW 9 | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - 1/8" internal thread | ||
 |
||
| Product no.: | SI 2700 | |
| Length: | 19 mm | |
| Length connector: | 7 mm | |
| Diameter: | 10 mm | |
| Width across flat: | SW 11 | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - M5 internal thread | ||
|
||
| Product no.: | SI 2705 | |
| Length: | 17 mm | |
| Length connector: | 5 mm | |
| Diameter: | 10 mm | |
| Width across flat: | SW 9 | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - 3 x 4 hose tail | ||
 |
||
| Product no.: | S 273x4 | |
| Length: | 25 mm | |
| Diameter: | 10 mm | |
| Width across flat: | SW 9 | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - 3 x 5 hose tail | ||
|
||
| Product no.: | S 273x5 | |
| Length: | 25 mm | |
| Diameter: | 10 mm | |
| Width across flat: | SW 9 | |
| Price: | on request | |
| Shipping time: | on request | |
| NW 2,7 plug - 4 x 6 hose tail | ||
|
||
| Product no.: | S 274x6 | |
| Length: | 25 mm | |
| Diameter: | 10 mm | |
| Width across flat: | SW 9 | |
| Price: | on request | |
| Shipping time: | on request | |
